820K481024

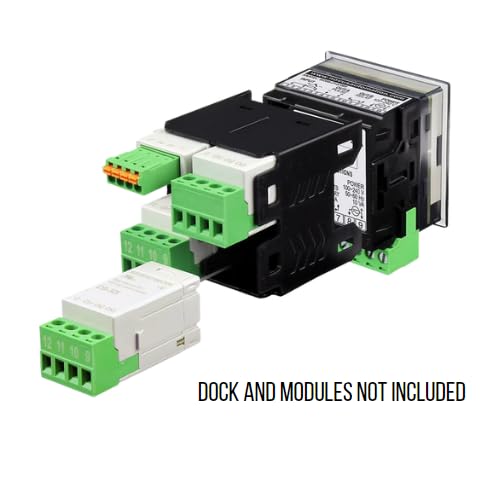

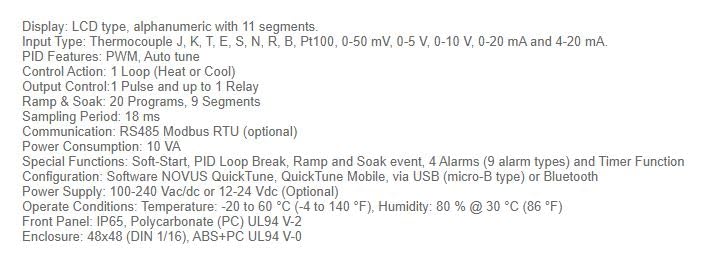

NOVUS 820K481024 N20K48 USB 24V Bluetooth Process controller, 1 relay, pulse out, 48x48mm (1/16 DIN) DOCK AND MODULES NOT INCLUDED Display: LCD type, alphanumeric with 11 segments. Input Type: Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA. PID Features: PWM, Auto tune Control Action: 1 Loop (Heat or Cool) Output Control:1 Pulse and up to 1 Relay Ramp & Soak: 20 Programs, 9 Segments Sampling Period: 18 ms Communication: RS485 Modbus RTU (optional) Power Consumption: 10 VA Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional) Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F) Front Panel: IP65, Polycarbonate (PC) UL94 V-2 Enclosure: 48x48 (DIN 1/16), ABS+PC UL94 V-0
