5-V, 10-V and 15-V parametric rating Standardized symmetrical output characteristics 100% tested for quiescent current at 20 V Maximum input current of 1 uA at 18 V (over full package temperature range), 100 nA at 18 V and 25 degrees C Noise margin (over full package temperature range): 1 V at VDD=5 V, 2 V at VDD=10 V, 2.5 V at VDD=15 V

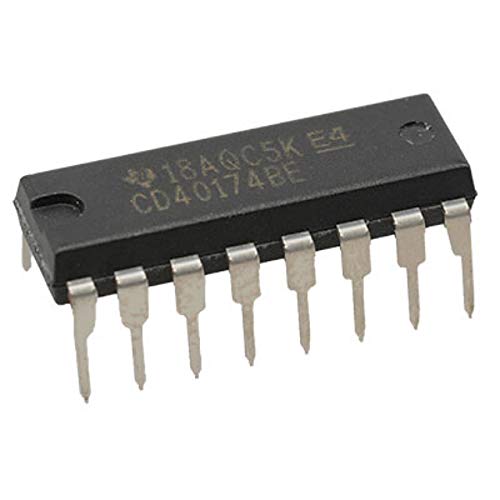

The CD40174B consists of six identical ’D’-type flip-flops having independent DATA inputs. The CLOCK and CLEAR inputs are common to all six units. Data are transferred to the Q outputs on the positive-going transition of the clock pulse. All sic flip-flops are simultaneously reset by a low level on the CLEAR input.
