Measures 2" x 2" x .188" x 1.875" with eight .281" diameter thru holes on 1" centerlines 10 Series compatible Durable connection that can be easily repositioned and reused #3393 assembly hardware recommended (not included) Made out of 6105-T5 aluminum (or equivalent) with a clear anodized finish

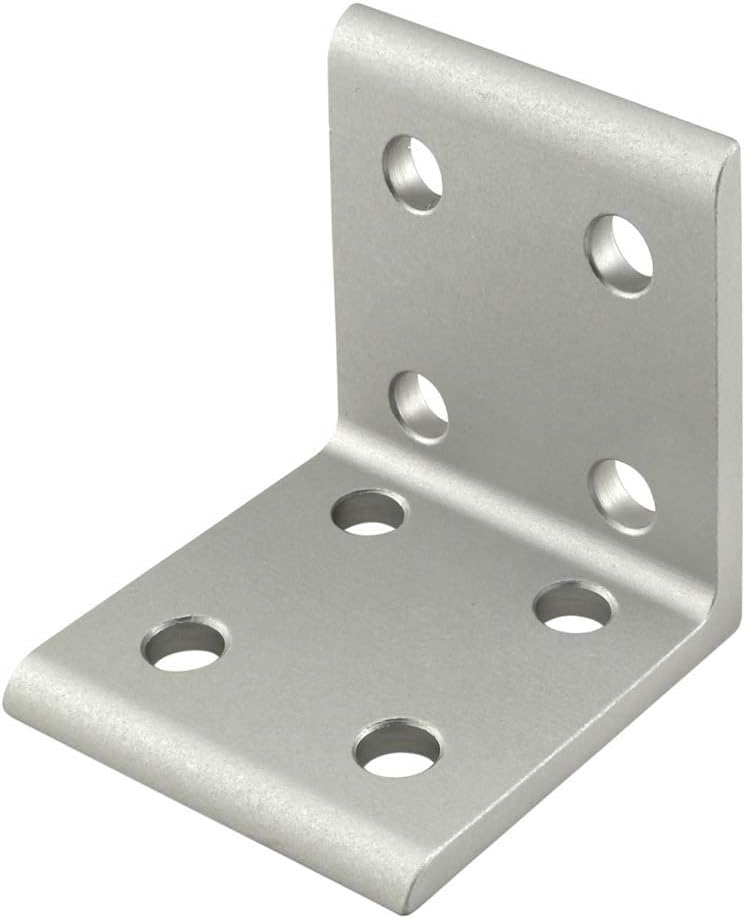

The 8 hole - inside corner bracket is an external fastening method that creates a 90 degree connection and has four holes on each side of the bracket, comprised of two rows and two columns. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 8 hole - inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
