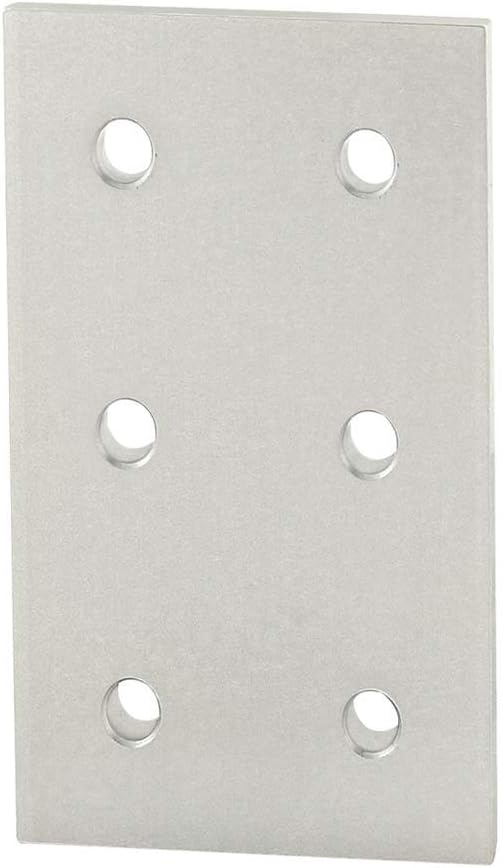

Measures 120mm x 6mm x 80mm with six 8.30mm diameter thru holes on 40mm centerlines 40 Series compatible Durable connection that can be easily repositioned and reused #75-3422 bolt assembly recommended (not included) Made out of 6105-T5 aluminum (or equivalent) with a clear anodized finish

The 6 hole - rectangular flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. The flat plate can provide infinite positioning along the profile T-slot, enabling a large degree of adjustability. When the bolts are tightened to the required torque the 2-degree drop-lock feature is engaged, helping to ensure the strength of the connection.
